Top Modular Kitchen Design Ideas for Indian Homes

A modular kitchen is bought on how it looks and lived with on how it measures. Counter height, the gap between two runs, where the chimney sits relative to the hob, and whether the corner cabinet is usable or dead space are what decide whether cooking there is comfortable. At Studio Rivet we design modular kitchens in Gurgaon and across Delhi NCR around Indian cooking specifically, which means real heat, real steam, heavy vessels and daily washing rather than the lighter European use most catalogue kitchens are dimensioned for.

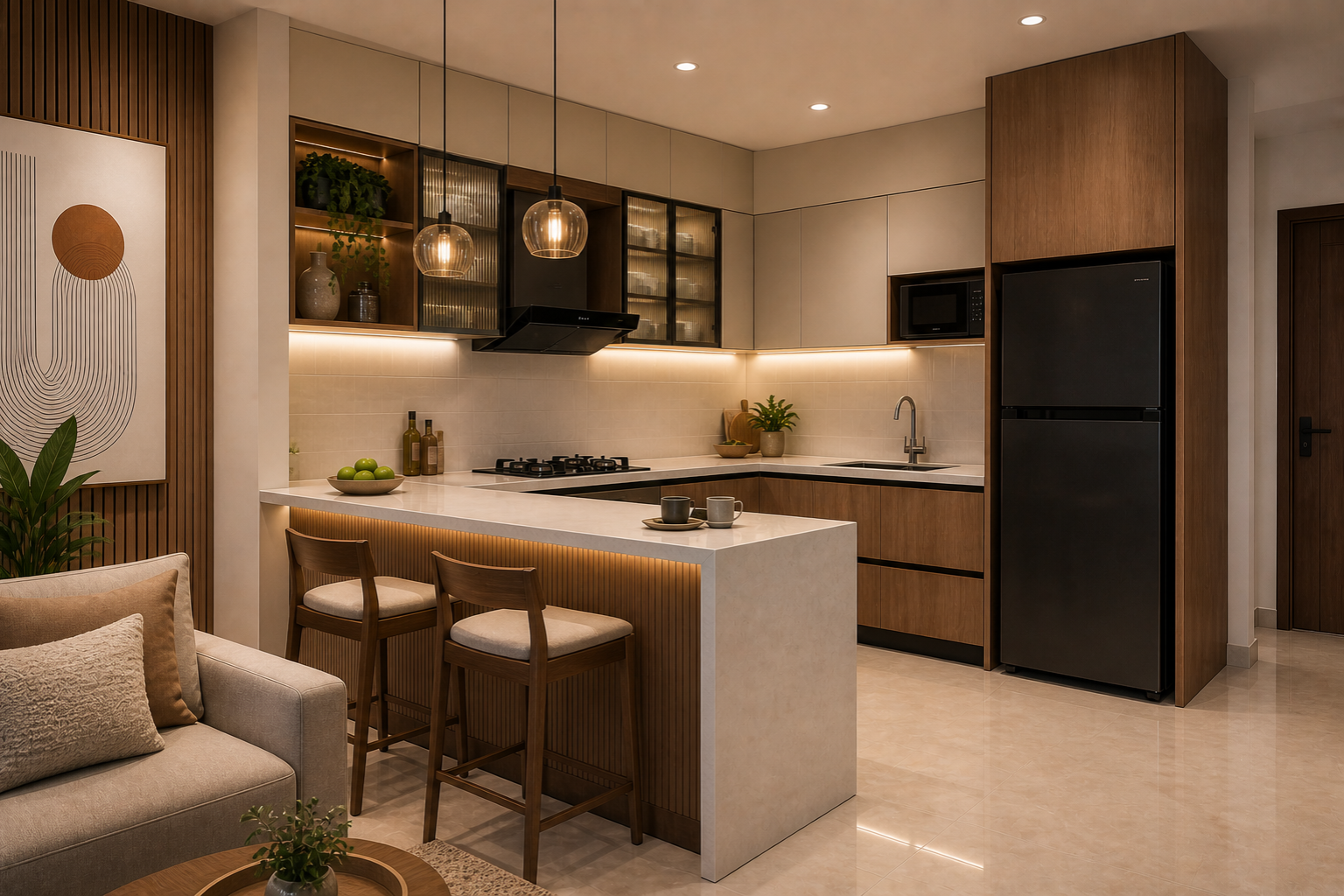

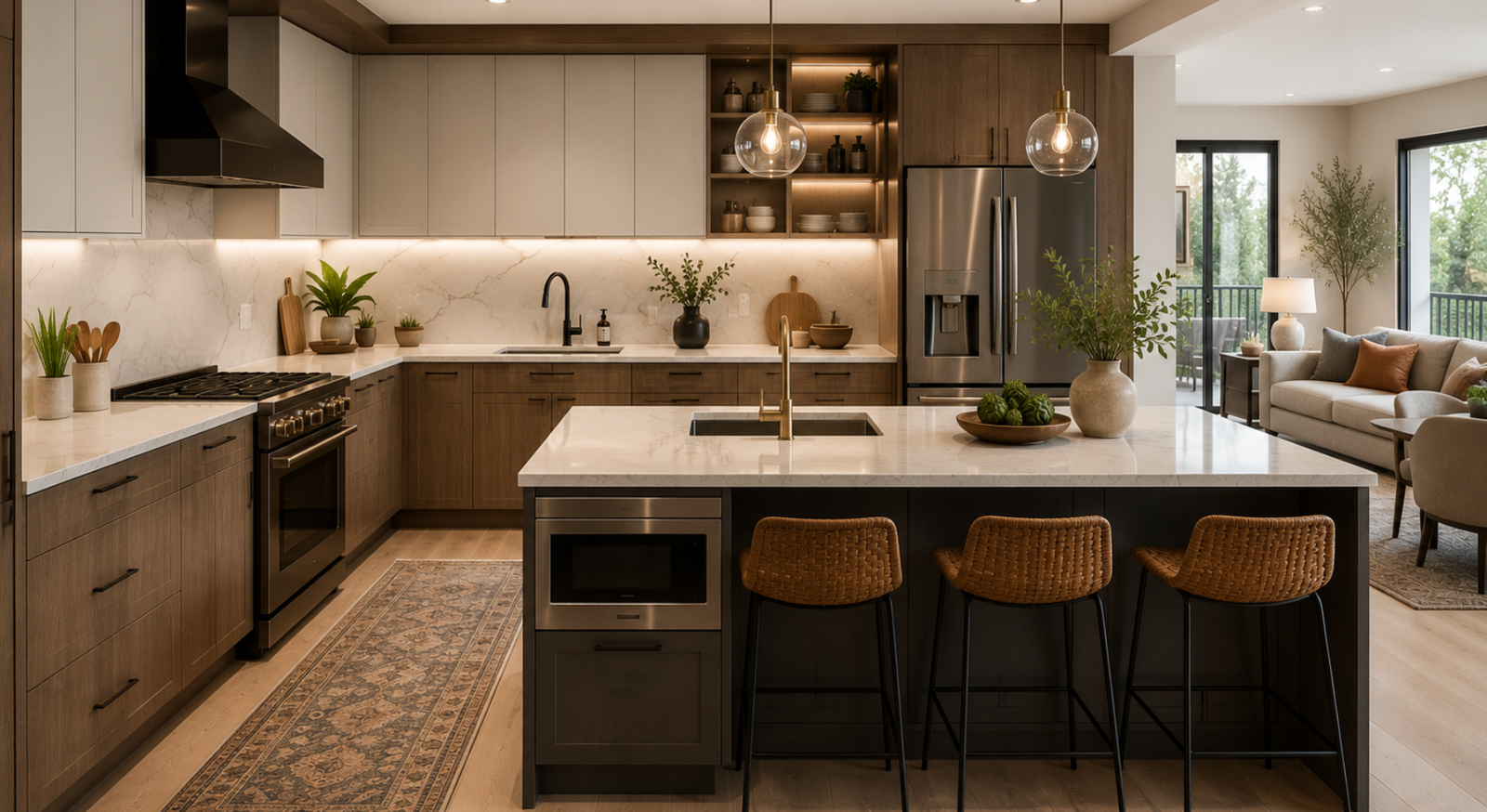

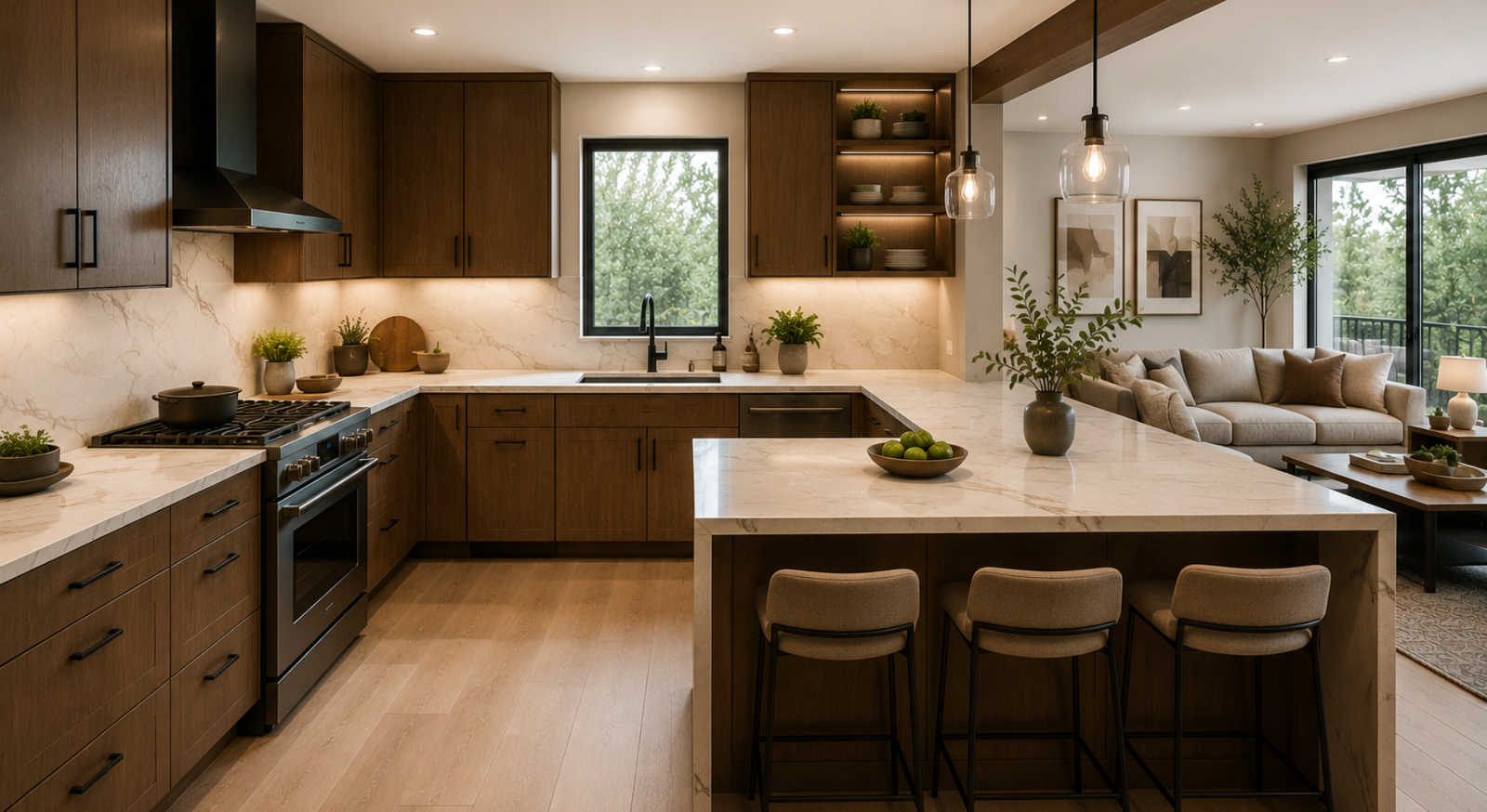

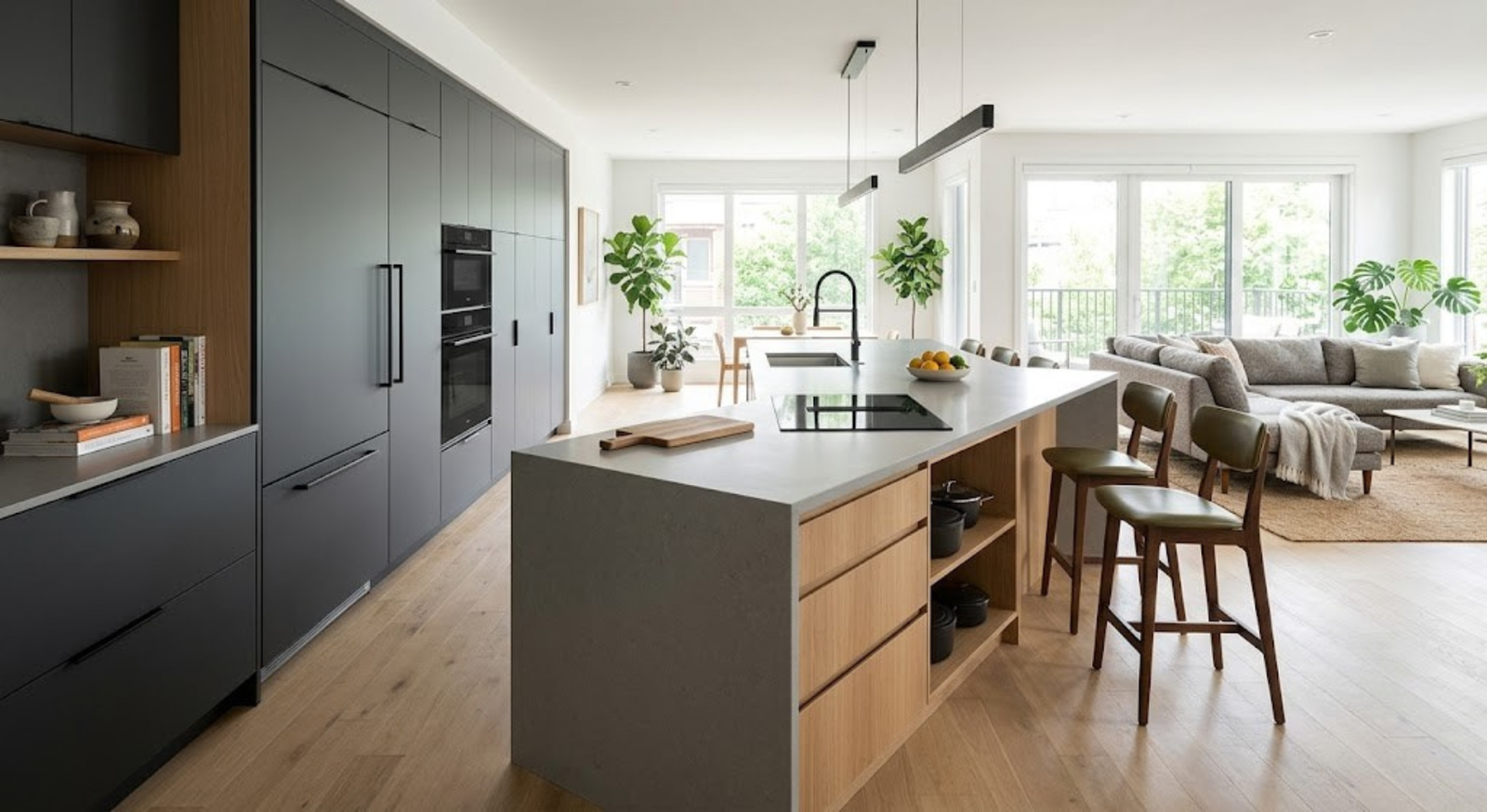

Browse the kitchen layouts below to find the one that suits your floor plan, from L-shaped and parallel kitchens for apartments to island and peninsula layouts for open plan homes. Each design can be adapted to your cooking style and budget, and works alongside the dining area rather than in isolation from it.

Modular Kitchen Design Ideas image

Modular Kitchen Design Tips

Set the Counter Height for Indian Cooking

The 36 inch counter most catalogues quote is too high for kneading dough or rolling rotis comfortably if you are around 5 feet 3 or shorter. Measure to the user's wrist height with arms relaxed, which usually lands between 32 and 34 inches. A slightly lower prep section within a taller run also works well.

Get the Work Triangle Right

Keep the sink, hob and refrigerator in a triangle whose three legs total roughly 13 to 26 feet, with no single leg under 4 feet. Nothing should cut through the middle of that triangle, which is why a badly placed island or a doorway in the wrong spot ruins an otherwise good layout.

Specify BWP Plywood, Not MDF

Indian kitchens deal with steam, spills and washing every day. BWP or marine grade plywood carcasses handle that; MDF and particle board swell permanently once water gets in, usually at the skirting or under the sink. Spend here even if it means a simpler shutter finish.

Size and Mount the Chimney Correctly

Indian tadka needs far more extraction than European cooking. Look for 1000 to 1200 m³/hr suction for a family kitchen, and mount it 26 to 30 inches above the hob. A ducted chimney venting outside outperforms a recirculating filter type by a wide margin, so plan the duct route early.

Use Drawers, Not Shutters, Below the Counter

Base cabinets with shutters mean kneeling and reaching blindly to the back. Full extension drawers bring everything to you, hold heavy vessels safely and use the full depth of the cabinet. This is the single upgrade clients notice most in daily use.

Plan the Wet and Utility Zone Separately

Dishwashing, the RO unit, the washing machine and soaking vessels need their own corner, ideally on a utility balcony or a dedicated wet run. Keeping that out of the main cooking counter is what stops an Indian kitchen from looking cluttered by 8pm every evening.

Modular Kitchen Design FAQs

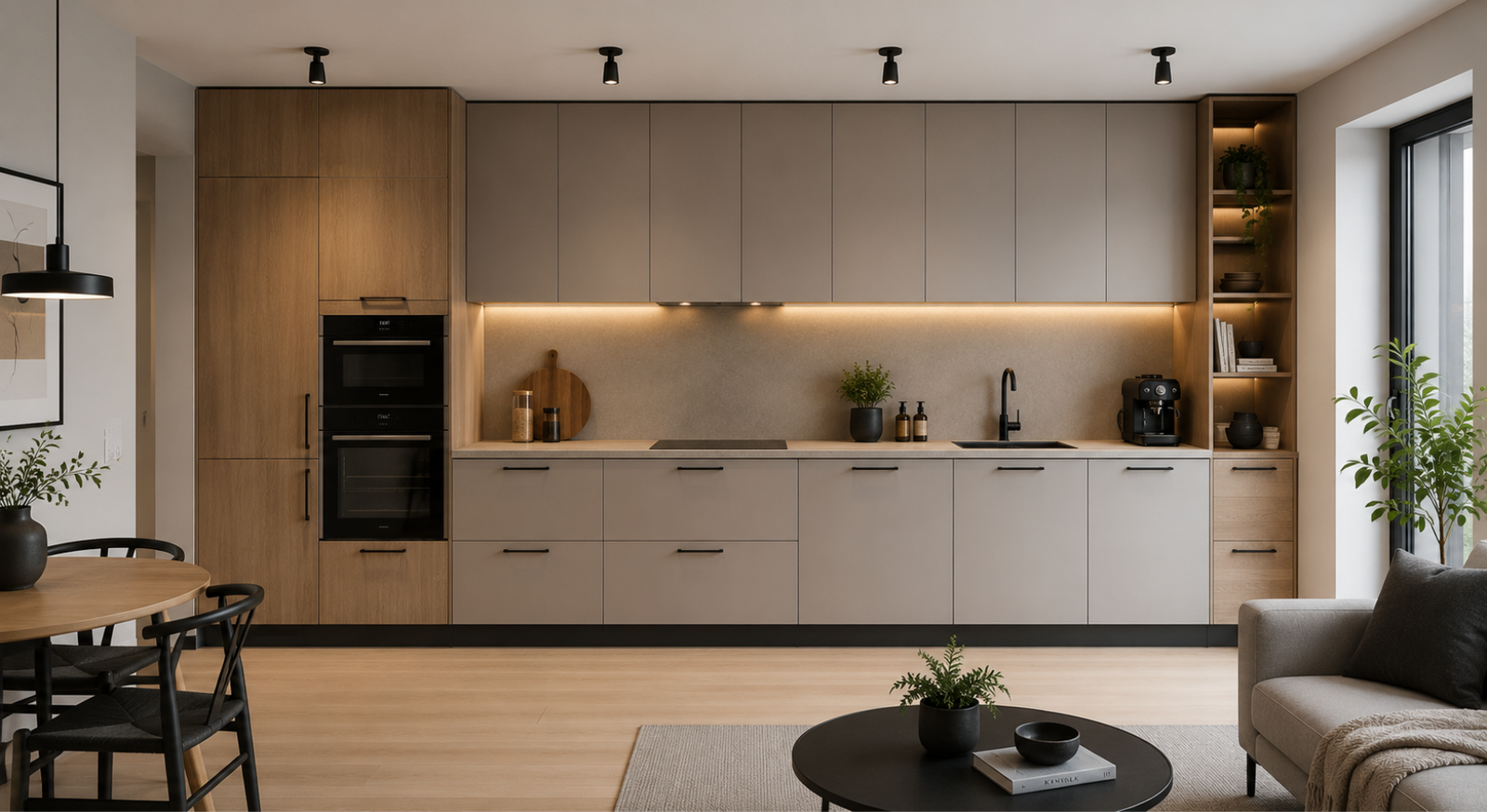

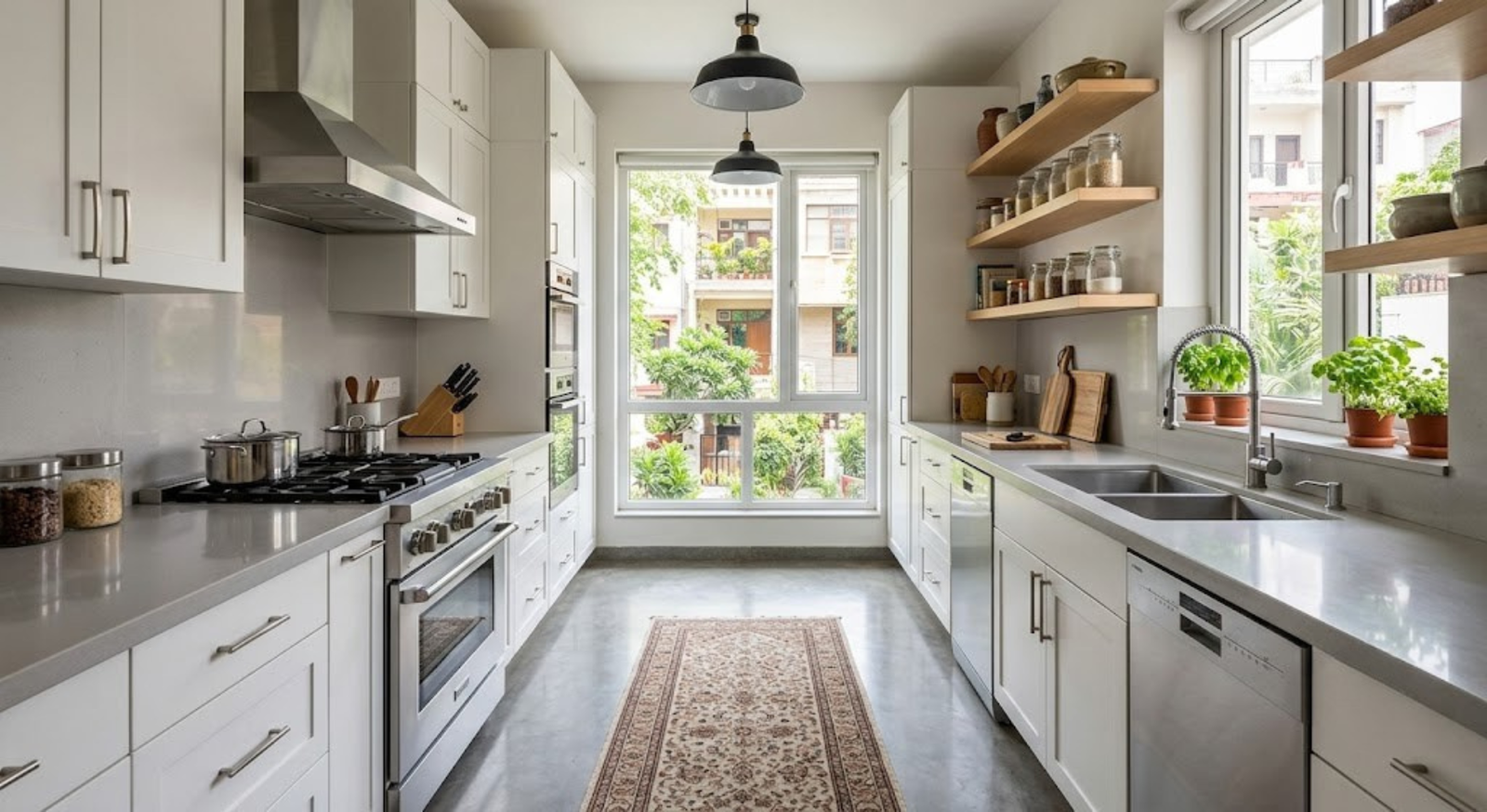

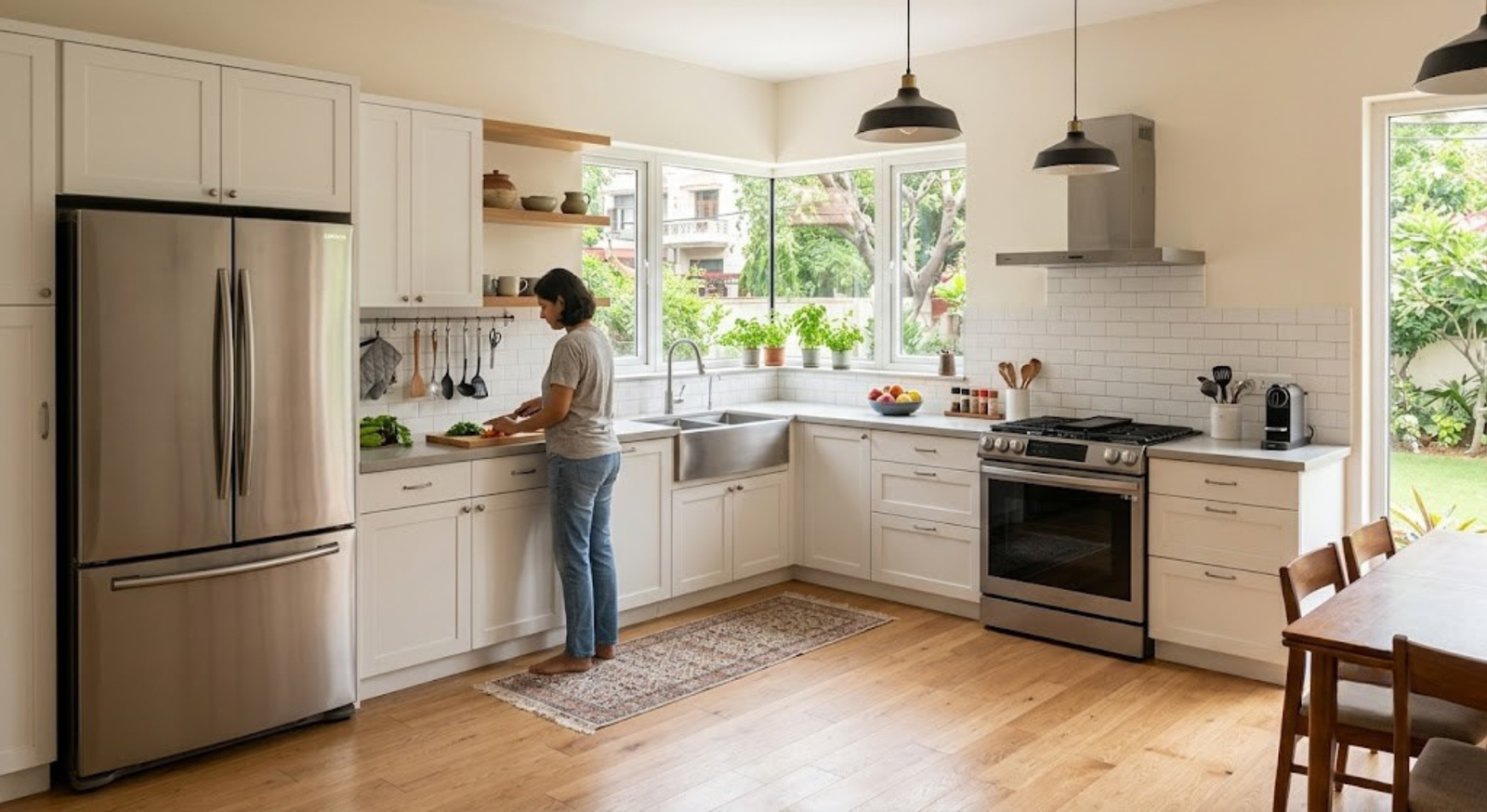

For a compact apartment, an L-shape is usually the best starting point because it gives a natural work triangle and leaves the rest of the room free. A parallel or galley layout is more efficient still if the room is narrow, provided you can keep 42 to 48 inches between the two runs. A straight one-wall kitchen suits studios and very open plans, but keep the total run under about 12 feet, otherwise the workflow stretches out and cooking becomes a walk.
Standard counter height is 36 inches, but for many Indian users, particularly anyone around 5 feet 3 or shorter, 32 to 34 inches is far more comfortable for kneading and rolling. Base cabinets are 24 inches deep, wall cabinets 12 to 14 inches, and the gap between counter and wall cabinet should be 18 to 24 inches. Allow at least 24 to 30 inches of clear counter beside the hob and 18 inches beside the sink for landing space.
For the carcass, BWP or marine grade plywood is the most reliable choice, because Indian kitchens see steam, spills and daily washing, and MDF or particle board swells permanently once moisture reaches it, usually near the sink or the skirting. For shutters, laminate is the most economical and hard wearing, acrylic gives a high gloss seamless look, and PU offers the widest colour range with a matte finish. Use aluminium or PVC skirting rather than wood at floor level.
Granite remains the best value in India, since it handles heat from hot vessels directly and resists chipping well. Engineered quartz is more stain resistant and available in cleaner uniform colours, but it should not take a hot pan straight off the flame, and darker quartz shows heat marks more readily. Avoid marble in a kitchen, as turmeric, lemon and oil all etch and stain it. Whichever you choose, ask for a proper edge profile and a sealed joint behind the sink.

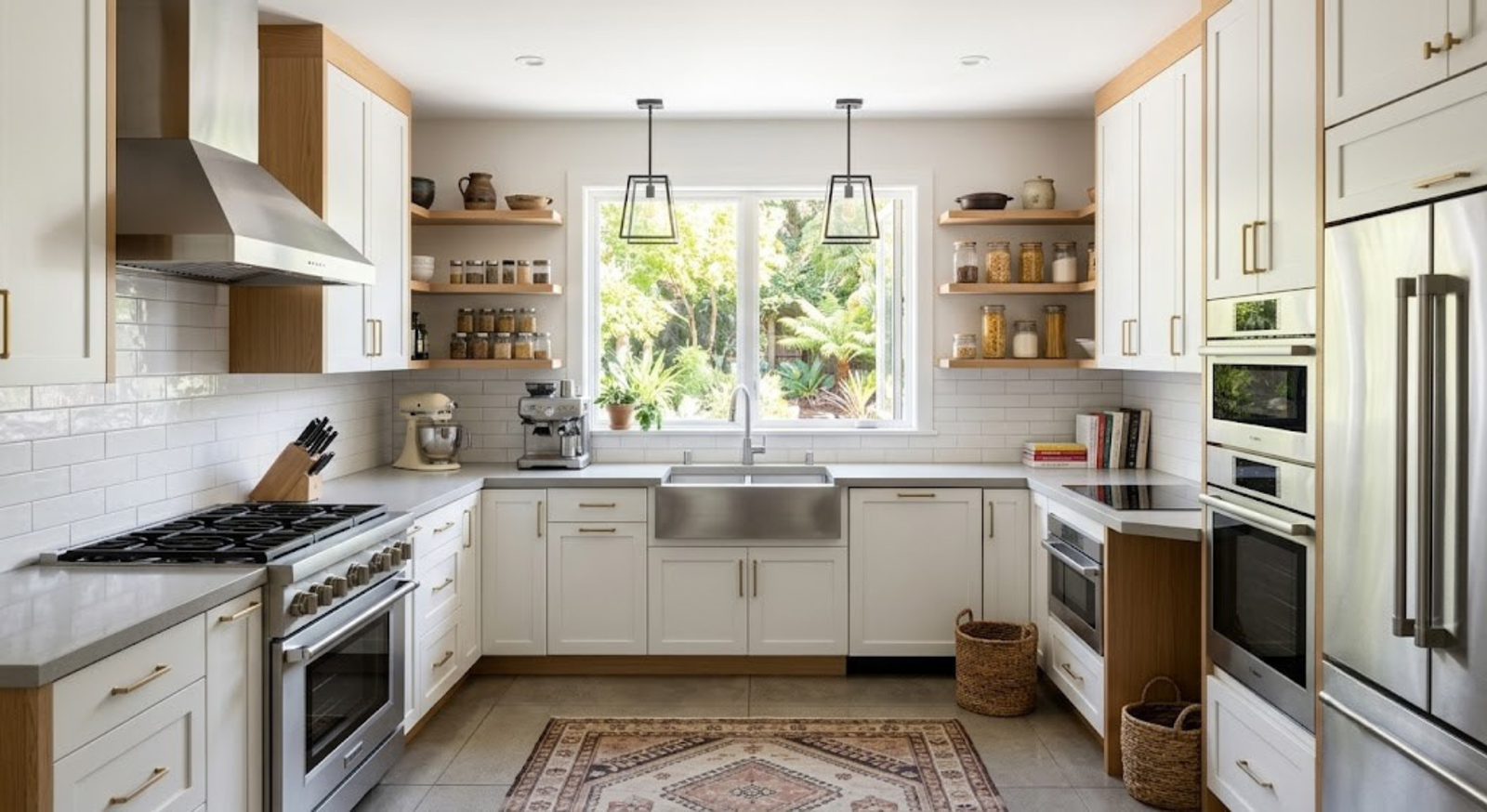

A basic modular kitchen with laminate shutters, plywood carcass and a granite counter typically falls between ₹1.5 lakh and ₹2.5 lakh for a standard apartment kitchen in Delhi NCR. A mid range kitchen with acrylic or PU shutters, quartz counter, tall units and quality hardware usually ranges from ₹3.5 lakh to ₹6 lakh, while a large island or U-shaped kitchen with premium fittings and appliances can go beyond ₹10 lakh. Appliances and the chimney are normally costed separately.
Yes, and it is a common project in older Gurgaon and Delhi apartments. In many cases the layout can be improved substantially without moving plumbing, simply by rebuilding the storage, changing the counter and correcting the chimney and lighting. Moving the sink or gas point is possible but depends on the existing drain and shaft position, which we check at the site visit before recommending anything.
